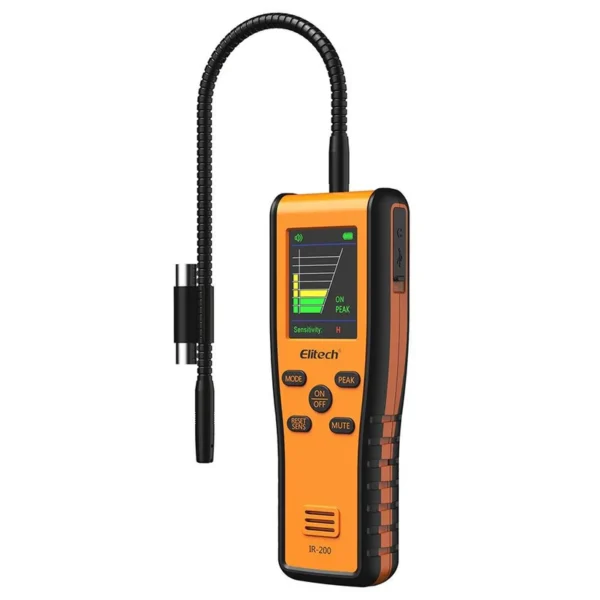

Key Features:
- Flexible Probe.
- UV LED.
- Filter Components.
- Headphone jack.
- USB Port (Type-C).
- Display Screen.
- Buttons.
- Buzzer.
Technical Specifications:

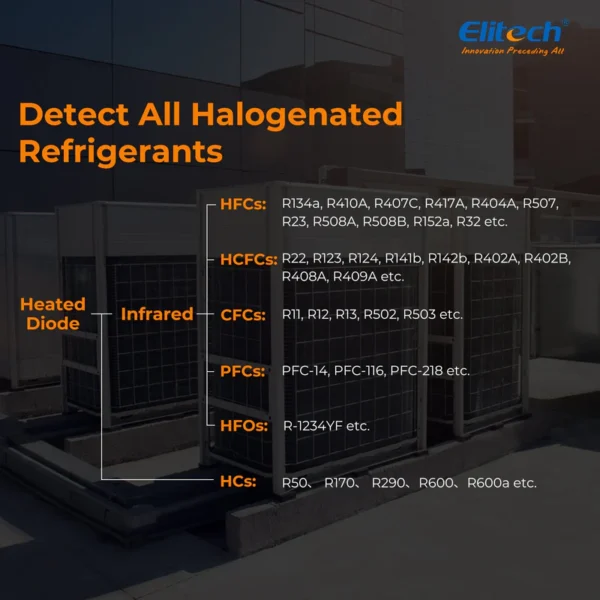

- Refrigerants: CFCs, HFCs, HCFC series and HF0-1234VF;
- Sensor life Infrared Sensor: 10 years; Heated Diode Sensor: SOOhrs;
- Sensitivity Infrared Sensor Max 4g/a; Heated Diode Sensor Max 13g/a;

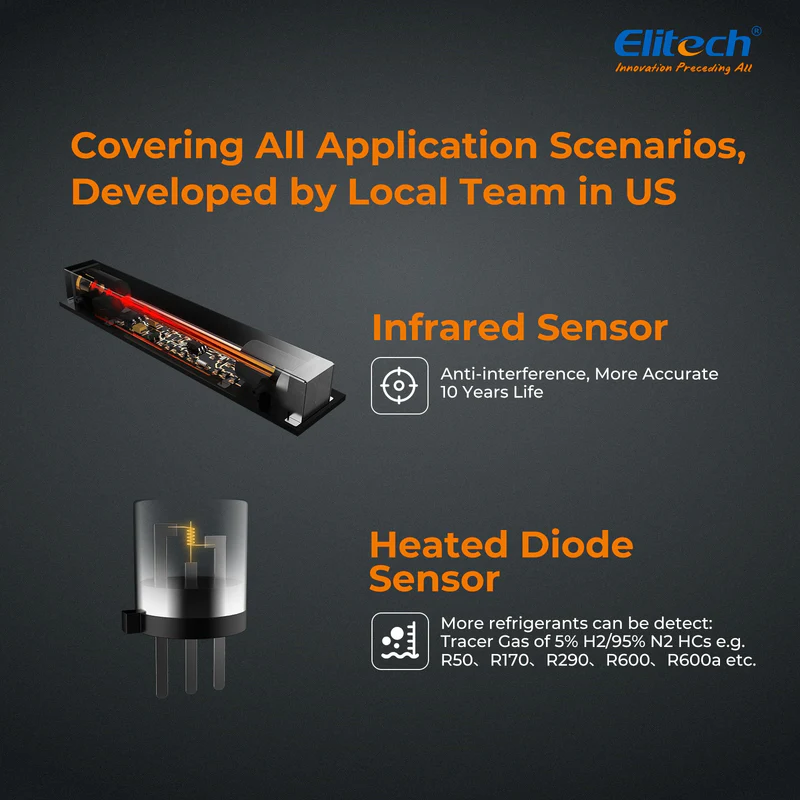

- Sensors Infrared & Heated Diode;
- Alarm Mode Audible and visual alarm;
- Auto OFF After 10 minutes of inactivity;
- Battery 2 x 18650 lithium battery (see Battery Replacement Diagram);
- Working Hour Bhrs continuously (in a single charged);
- Charging Time Approx. 4hrs;
- Charging Voltage/Current DC SV, 1A;
- Storage Temperature -20° C ~ 60° C (-4° F ~ 140°F);
- Humidity 90%RH (non-condensing);
- Operating Temperature -10° c~ s2° c;
- Certifications CE, EN14624:2012, RoHS, SALJ1627, SAE_J27 91, SAE_J2913;

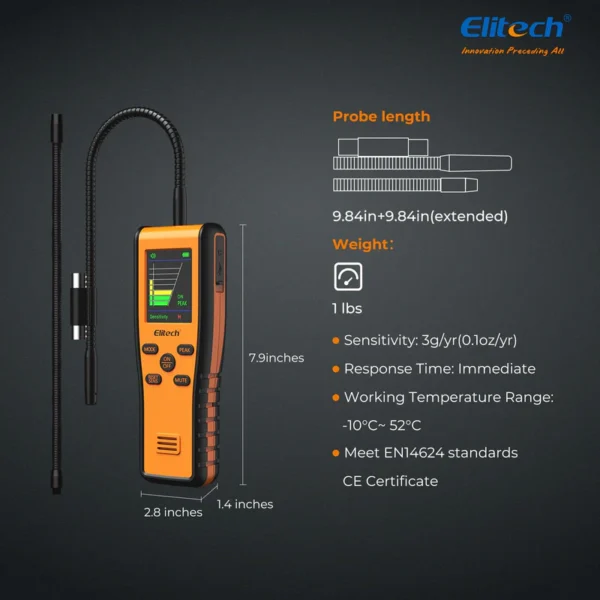

- Dimensions 201 x 72 x 35 mm (7.9″ x2.8″ X 1.4″ );
- Weight 450g (15.9oz).

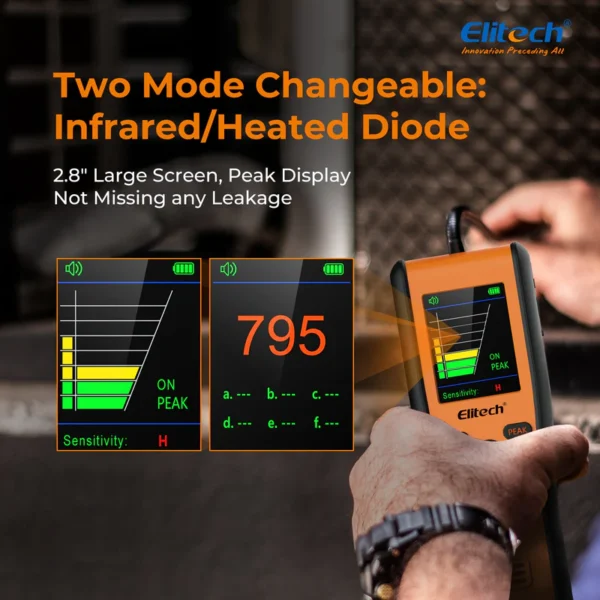

Display Infrared Interface:
- Buzzer: Indicates buzzer status. Red icon: disabled; Green icon: enabled.
- Peal< value: Indicates the maximum detected leakage.
- Leal< value: Indicates the current detected leakage. The higher the leak concentration, the higher the bars.
- Sensitivity level: Displays current sensitivity level. 3 levels are available for different needs.
- H: high sensitivity;
- M: medium sensitivity;
- L: low sensitivity.
- Battery charging status.
- Battery level: Displays current battery level.
Green: Full battery; Yellow: Low battery; Red: Extreme-low battery, please charge ASAP. - PEAK ON/OFF: Indicates PEAi< function status. The display shows ON or OFF to indicate the peak function is enabled or disabled (Turn off PEAi< will clear all recorded peak values).
Heated Diode Interface:
- Leakage reference value based on the detected concentration.
- Record 6 reference values to locate the maximum leakage point.
What’s Included:
-
- Infrared Leak Detector x1.
- UV LED x1.
- User Manual x1.
- Plastic Case x1.
- Power Adapter x1.
- Charging Cable x1.
- Filter Components xS.
